Advanced diagnostics for critical energy assets
Transform Complex Vibration Data into Actionable Decisions for Nuclear Asset Reliability
Bridge the gap between standard condition monitoring systems and deep root-cause identification. Download the definitive guide to resolving complex dynamics in US nuclear facilities.
When Standard Diagnostics Reach Their Limits
Despite the widespread use of real-time monitoring systems, many vibration-related issues in critical assets—such as steam turbines, reactor coolant pumps, and generators—remain difficult to diagnose. Complex interactions between mechanical, fluid, and electromagnetic forces often generate vibration signatures that are difficult to interpret.
Engineers face an uncomfortable situation where they collect sufficient data, but still cannot pinpoint the exact root causes, leading to conservative derating, unnecessary shutdowns, and costly unplanned outages.
Inside the White Paper: Proven Methodologies for Nuclear Reliability
To secure the long-term operation of the existing fleet and support new build R&D, operators should move beyond basic predictive maintenance.
What you will find in this technical white paper is a proven 5-step implementation framework for nuclear operators, detailing how to:
- Deploy Portable Vibration Analyzers: Capture gap-free, high-frequency data in restricted environments where standard instrumentation falls short.
- Execute Advanced Dynamic Analysis: Utilize Operating Deflection Shape (ODS), synchronous order analysis, and Experimental Modal Analysis (EMA) to uncover hidden excitation sources.
- Ensure Regulatory Compliance: Standardize testing workflows to yield highly repeatable, traceable data that supports ASME NQA-1 and IEC standards.
- Refine Models & Safe Margins: Correlate experimental field measurements directly with simulation models to validate asset integrity.
Proven in the Most Demanding Energy Environments
These methodologies are actively used to solve critical issues on rotating machinery technically equivalent to those found in nuclear power plants.
OROS is trusted by major energy and nuclear players since 1985: explore how OROS solutions deliver quantifiable results:
BASF: Root Cause Identification in a Complex Turbo-Generator
- The Challenge: Unexplained turbine trips and a critical low-pressure blade failure despite recent overhauls.
- The Solution: Deploying a portable OROS vibration analyzer with ORBIGate software to visualize complex sub-synchronous instabilities.

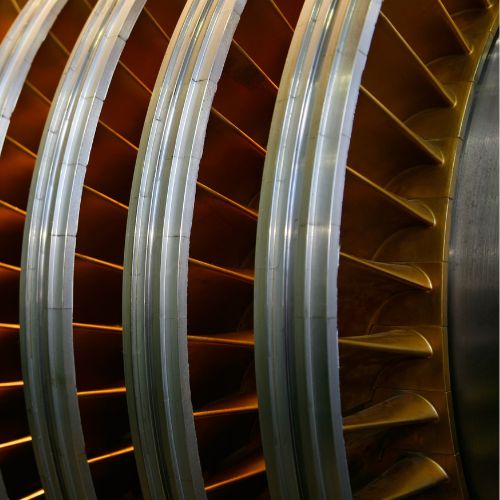

ŠKODA POWER: Controlling Resonance Risks in Steam Turbine Blades
Read the full BASF case study
- The Challenge: Accurately identifying closely spaced natural frequencies and mode shapes on rotating bladed disks to prevent fatigue.
- The Solution: Performing Experimental Modal Analysis (EMA) with OROS’s OR36 multi-channel analyzer and correlating results with simulation data.
SIEMENS ENERGY: Standardizing Generator Diagnostics
- The Challenge: Assessing the complex vibration behavior of generator stator end-windings to prevent progressive degradation.
- The Solution: Utilizing Driving Point Analysis (DPA) to extract natural frequencies and damping, standardizing field diagnostics across multiple sites.
